Marvell SATA Controllers

SATA Controllers

High-performance RAID storage controllers with features and flexibility that systems designers need.

SATA Controllers

88SE14xx PCIe 3.0 to 6Gb/s SATA Host Controllers

The Marvell 88SE14xx family of PCIe to SATA 6Gb/s host controllers offers an ideal cost effective solution for connecting Serial ATA (SATA) peripherals to a PCI Express (PCIe) 3.0 host, delivering up to 8GB/s bandwidth. The controllers support up to 16 SATA ports for SSD or HDD connectivity for cloud and archival applications.



Key Features

  • PCIe 3.0 X8 lanes
  • Sixteen 6Gb/s SATA ports
  • Hardware-assisted RAID 5/6
  • Two independent integrated XOR engines
  • Programmable Signaling Levels
  • Two-Wire Serial Interface (TWSI)
  • GPIO Support
  • SPI Flash Interface
  • Small footprint with low power consumption --- 8.5 watts

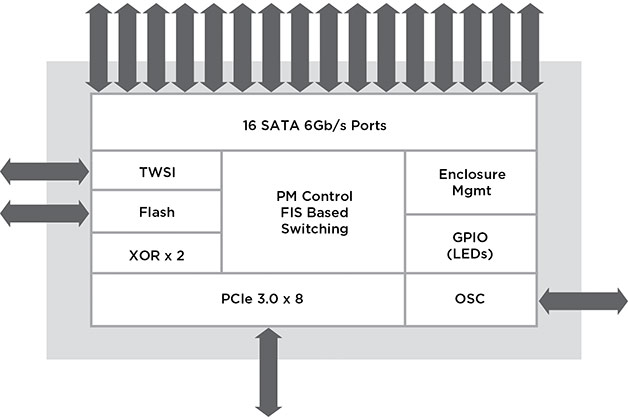

88SE14xx Block Diagram
Figure 1: 88SE1475 Controller Block Diagram

Applications

The Marvell 88SE1475 is targeted at cloud, archival, and high capacity storage subsystems.

Available Products

88SE1475 (PCIe 3.0 x 8 to 16 6Gb/s SATA Ports I/O Controller)

Documentation

Recent News

Marvell Introduces New Family of High-Performance RAID Storage Controllers with Eight Gbps SATA Ports

May 31, 2016

Additional Information

Additional product information is available under NDA on the Marvell Extranets. To contact Marvell Sales, please submit your inquiry via request for information below.
